Sample pine script

Sample Pine Script for MIRRORPIP Integration

This guide will help you create a basic TradingView Pine Script strategy that sends Buy ,Sell, Short and Cover  alerts to MIRRORPIP for automated crypto trading execution.

Using TradingView + MIRRORPIP, you can:

  • Automate strategies
  • Execute trades on connected exchanges
  • Run webhook-based trading systems
  • Copy and scale strategies seamlessly

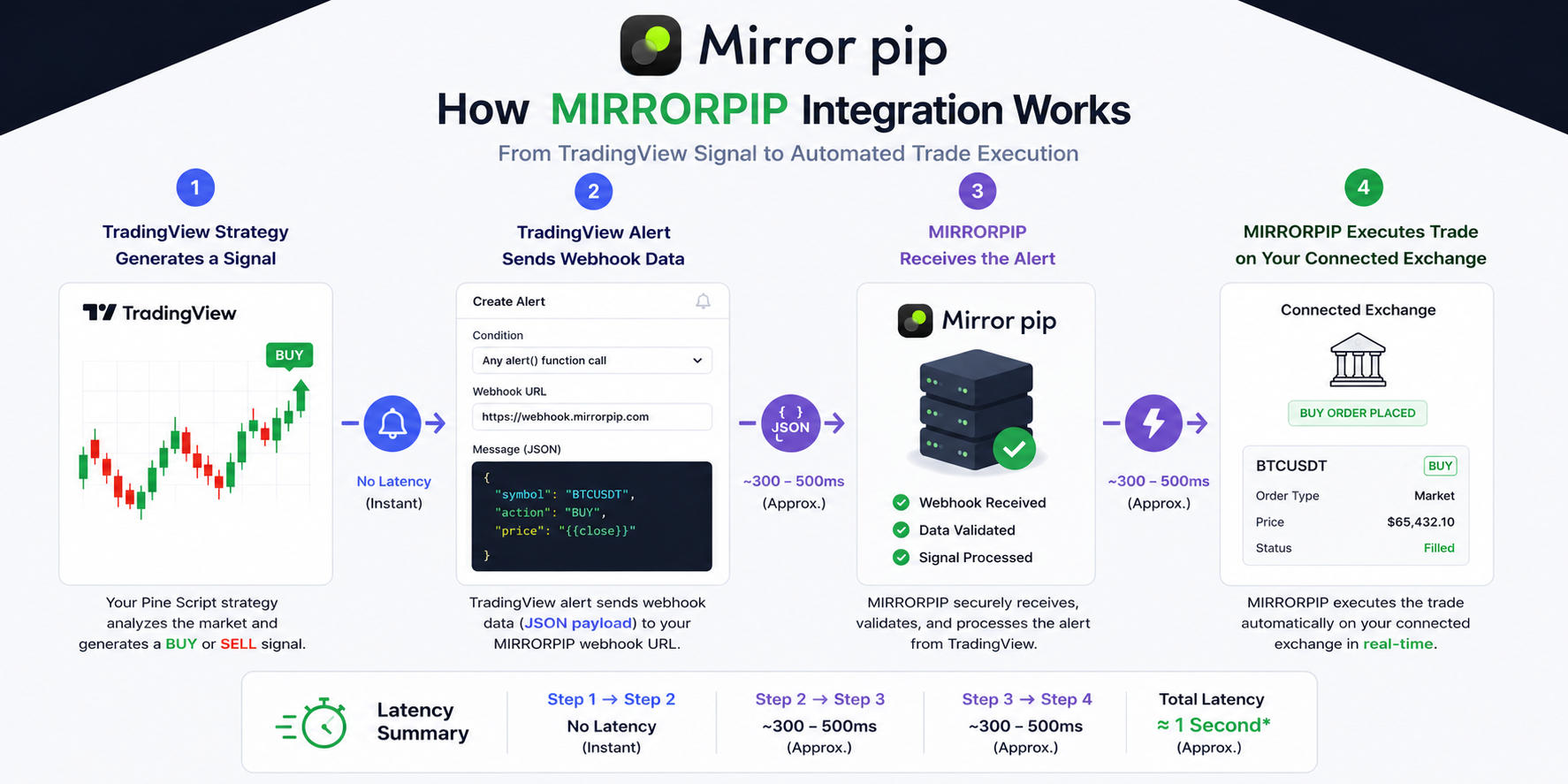

How MIRRORPIP Integration Works

The workflow is simple:

  1. TradingView strategy generates a signal
  2. TradingView alert sends webhook data
  3. MIRRORPIP receives the alert
  4. MIRRORPIP executes the trade on your connected exchange

Basic Pine Script Example

Below is a simple EMA crossover strategy example for MIRRORPIP integration.

// mirrorpip

//@version=5
strategy(" EMA Bands Strategy v1.0", shorttitle=" EMA Bands Strategy", overlay=true, default_qty_type=strategy.fixed, default_qty_value=1, pyramiding = 0, initial_capital=300000, currency=currency.NONE, commission_value=0, commission_type=strategy.commission.percent, process_orders_on_close=false, calc_on_every_tick=true, calc_on_order_fills = false)

////======================================================
paraTradeMode = input.string(title='Trade Mode', defval='Both', options=['Both', 'LongOnly', 'ShortOnly'], group = "Trade Settings")
paraSystemMode = input.session(defval="Intraday", title="System Mode", options=["Intraday", "Positional"], group = "Trade Settings")
s = input.session(title='Intraday Start Session:', defval='0915-1445', group='Trade Settings')
e = input.session(title='Intraday End Session:', defval='1500-1515', group='Trade Settings')

paraEMA = input.int(20, "EMA Period : ", minval = 1, group = "EMA Settings")

paraTGTMode = input.string(defval="%", title="Target : ", options=["Off", "%", "Pts"], inline = "TGT", group = "Target Settings")
paraTGT1 = input.float(1, "T1 : ", minval = 0, inline = "TGT", group = "Target Settings")
paraTGT = input.float(2, "T2 : ", minval = 0.1, inline = "TGT", group = "Target Settings")

paraSLMode = input.string(defval="%", title="Stoploss : ", options=["Off", "%", "Pts"], inline = "SL", group = "Stoploss Settings")
paraSL = input.float(1, "Value : ", minval = 0.1, inline = "SL", group = "Stoploss Settings")

paraTSLMode = input.string(defval="%", title="Trail SL : ", options=["Off", "%", "Pts"], inline = "TSL", group = "TSL Settings")
paraTSL = input.float(0.50, "Value : ", minval = 0.1, inline = "TSL", group = "TSL Settings")

paraShowDashboard = input.bool(true, "Show Strategy Dashboard")
////======================================================

////======================================================
grpAlgo = "Algo Setup"
paraExchange = input.string(title='Exchange', defval='delta', group=grpAlgo)
paraCode = input.string(title='Code', defval='XXXXXX', group=grpAlgo)
paraQtyType = input.string(title="Quantity Type", defval='Fixed',options=['Fixed','Exposure'], group=grpAlgo)
paraQty = input.float(title='Quantity ', defval=1, minval=0, group=grpAlgo, tooltip='Qty in Lots for Futures')
paraT1Qty = input.float(title='Target-1 Exit Qty (%)', defval=0, minval=0, maxval = 100, group=grpAlgo, tooltip='Qty in Percentage')
paraMaxProfit = input.int(0, "Max Profit Per Trade", 0, group=grpAlgo, tooltip='Exit on Max. Profit in Rs.')
paraMaxLoss = input.int(0, "Max Loss Per Trade", 0, group=grpAlgo, tooltip='Exit on Max. Loss in Rs.')
////======================================================

////======================================================
EMAH = ta.ema(high, paraEMA)
EMAL = ta.ema(low, paraEMA)
////======================================================

////======================================================
FC = session.isfirstbar
LC = session.islastbar

st = paraSystemMode=="Positional" ? 1 : time(timeframe.period, s)
et = paraSystemMode=="Intraday" and time(timeframe.period, e)

eBuy1 = (ta.crossover(close, EMAH) or (paraSystemMode=="Intraday" and st and not st[1] and close > EMAH)) and barstate.isconfirmed
eShort1 = (ta.crossunder(close, EMAL) or (paraSystemMode=="Intraday" and st and not st[1] and close < EMAL)) and barstate.isconfirmed

MainSignal = 0
BuySignal = paraTradeMode!="ShortOnly" and st and eBuy1 and barstate.isconfirmed and (nz(MainSignal[1]) <= 0)
ShortSignal = paraTradeMode!="LongOnly" and st and eShort1 and barstate.isconfirmed and (nz(MainSignal[1]) >= 0)
SellSignal = (((ShortSignal or eShort1) and barstate.isconfirmed) or et) and (nz(MainSignal[1]) == 1)
CoverSignal = (((BuySignal or eBuy1) and barstate.isconfirmed) or et) and (nz(MainSignal[1]) == -1)
MainSignal := BuySignal ? 1 : ShortSignal ? -1 : ((SellSignal and MainSignal[1] > 0) or strategy.position_size == 0) ? 0 : ((CoverSignal and MainSignal[1] < 0) or strategy.position_size == 0) ? 0 : MainSignal[1]
////======================================================

////======================================================
symbol = syminfo.ticker

eBuyPrice = ta.valuewhen(BuySignal, close, 0)
eShortPrice = ta.valuewhen(ShortSignal, close, 0)

LESym = str.tostring(syminfo.ticker)
LXSym = str.tostring(syminfo.ticker)
SESym = str.tostring(syminfo.ticker)
SXSym = str.tostring(syminfo.ticker)

var float BuyTradeQty = na
var float ShortTradeQty = na

BuyTradeQty := paraQty
ShortTradeQty := paraQty

if (paraQtyType=="Exposure")
    BuyTradeQty := paraQty / eBuyPrice
    BuyTradeQty := math.round(BuyTradeQty / syminfo.pointvalue)
    ShortTradeQty := paraQty / eShortPrice
    ShortTradeQty := math.round(ShortTradeQty / syminfo.pointvalue)

    if (BuyTradeQty < 0)
        BuyTradeQty := 1
    if (ShortTradeQty < 0)
        ShortTradeQty := 1

buyData = '{ "exchange": "' + paraExchange + '", "price": "' + str.tostring(close) + '", "chart_symbol": "' + LESym + '", "order_type": "BUY", "instrument_type": "NA", "quantity": "' + str.tostring(BuyTradeQty) + '", "tp": "0", "sl": "0", "code": "'+paraCode+'"}'
sellData = '{ "exchange": "' + paraExchange + '", "price": "' + str.tostring(close) + '", "chart_symbol": "' + LXSym + '", "order_type": "SELL", "instrument_type": "NA", "quantity": "' + str.tostring(BuyTradeQty) + '", "tp": "0", "sl": "0", "code": "'+paraCode+'"}'
shortData = '{ "exchange": "' + paraExchange + '", "price": "' + str.tostring(close) + '", "chart_symbol": "' + SESym + '", "order_type": "SHORT", "instrument_type": "NA", "quantity": "' + str.tostring(ShortTradeQty) + '", "tp": "0", "sl": "0", "code": "'+paraCode+'"}'
coverData = '{ "exchange": "' + paraExchange + '", "price": "' + str.tostring(close) + '", "chart_symbol": "' + SXSym + '", "order_type": "COVER", "instrument_type": "NA", "quantity": "' + str.tostring(ShortTradeQty) + '", "tp": "0", "sl": "0", "code": "'+paraCode+'"}'
////======================================================

////======================================================
if BuySignal and strategy.position_size < 0
    strategy.entry('BUY', strategy.long, comment='Buy', qty=BuyTradeQty, alert_message="["+coverData+","+buyData+"]")
else if BuySignal and strategy.position_size == 0
    strategy.entry('BUY', strategy.long, comment='Buy', qty=BuyTradeQty, alert_message="["+buyData+"]")

if ShortSignal and strategy.position_size > 0
    strategy.entry('SHORT', strategy.short, comment='Short', qty=ShortTradeQty, alert_message="["+sellData+","+shortData+"]")
else if ShortSignal and strategy.position_size == 0
    strategy.entry('SHORT', strategy.short, comment='Short', qty=ShortTradeQty, alert_message="["+shortData+"]")

var float BuyPrice = na
var float ShortPrice = na
var float BuyTGT = na
var float ShortTGT = na
var float BuyTGT1 = na
var float ShortTGT1 = na
var float BuySL = na
var float ShortSL = na
var float BuyTSL = na
var float ShortTSL = na

ut = (paraTGTMode != "Off")
us = (paraSLMode != "Off")

if (strategy.position_size > 0 and strategy.position_size[1] <= 0)
    BuyPrice := strategy.position_avg_price
    if (paraSLMode=="%")
        BuySL := BuyPrice * (1-(paraSL/100))
    else if (paraSLMode=="Pts")
        BuySL := BuyPrice - (paraSL)

    if (paraTGTMode=="%")
        BuyTGT1 := BuyPrice * (1+(paraTGT1/100))
        BuyTGT := BuyPrice * (1+(paraTGT/100))
    else if (paraTGTMode=="Pts")
        BuyTGT1 := BuyPrice + (paraTGT1)
        BuyTGT := BuyPrice + (paraTGT)

if (strategy.position_size < 0 and strategy.position_size[1] >= 0)
    ShortPrice := strategy.position_avg_price
    if (paraSLMode=="%")
        ShortSL := ShortPrice * (1+(paraSL/100))
    else if (paraSLMode=="Pts")
        ShortSL := ShortPrice + (paraSL)

    if (paraTGTMode=="%")
        ShortTGT1 := ShortPrice * (1-(paraTGT1/100))
        ShortTGT := ShortPrice * (1-(paraTGT/100))
    else if (paraTGTMode=="Pts")
        ShortTGT1 := ShortPrice - (paraTGT1)
        ShortTGT := ShortPrice - (paraTGT)

if (paraTSLMode != "Off")
    if (strategy.position_size > 0 and strategy.position_size[1] > 0)
        if (paraTSLMode=="%")
            BuyTSL := high[1] * (1-(paraTSL/100))
        else
            BuyTSL := high[1] - paraTSL
        if (BuySL < BuyTSL)
            BuySL := BuyTSL
    if (strategy.position_size < 0 and strategy.position_size[1] < 0)
        if (paraTSLMode=="%")
            ShortTSL := low[1] * (1+(paraTSL/100))
        else
            ShortTSL := low[1] + paraTSL
        if (ShortSL > ShortTSL)
            ShortSL := ShortTSL

if (paraMaxProfit > 0)
    if (strategy.position_size > 0 and strategy.opentrades.profit(strategy.opentrades - 1) >= paraMaxProfit)
        strategy.close("BUY", immediately = true, alert_message="["+sellData+"]")
    if (strategy.position_size < 0 and strategy.opentrades.profit(strategy.opentrades - 1) >= paraMaxProfit)
        strategy.close("SHORT", immediately = true, alert_message="["+coverData+"]")

if (paraMaxLoss > 0)
    if (strategy.position_size > 0 and strategy.opentrades.profit(strategy.opentrades - 1) <= -(paraMaxLoss))
        strategy.close("BUY", immediately = true, alert_message="["+sellData+"]")
    if (strategy.position_size < 0 and strategy.opentrades.profit(strategy.opentrades - 1) <= -(paraMaxLoss))
        strategy.close("SHORT", immediately = true, alert_message="["+coverData+"]")

Pos_Size = math.abs(strategy.position_size)
T1ExQty = math.round(Pos_Size*(paraT1Qty/100))
TPsellData = '{ "exchange": "' + paraExchange + '", "price": "' + str.tostring(close) + '", "chart_symbol": "' + LXSym + '", "order_type": "SELL", "instrument_type": "NA", "quantity": "' + str.tostring(T1ExQty) + '", "tp": "0", "sl": "0", "code": "'+paraCode+'"}'
TPcoverData = '{ "exchange": "' + paraExchange + '", "price": "' + str.tostring(close) + '", "chart_symbol": "' + SXSym + '", "order_type": "COVER", "instrument_type": "NA", "quantity": "' + str.tostring(T1ExQty) + '", "tp": "0", "sl": "0", "code": "'+paraCode+'"}'

sellData := '{ "exchange": "' + paraExchange + '", "price": "' + str.tostring(close) + '", "chart_symbol": "' + LXSym + '", "order_type": "SELL", "instrument_type": "NA", "quantity": "' + str.tostring(Pos_Size) + '", "tp": "0", "sl": "0", "code": "'+paraCode+'"}'
coverData := '{ "exchange": "' + paraExchange + '", "price": "' + str.tostring(close) + '", "chart_symbol": "' + SXSym + '", "order_type": "COVER", "instrument_type": "NA", "quantity": "' + str.tostring(Pos_Size) + '", "tp": "0", "sl": "0", "code": "'+paraCode+'"}'

if ut == true and us == false
    if (strategy.position_size > 0)
        if (paraT1Qty > 0 and paraTGT1 > 0)
            strategy.exit(id="LongT1Exit", from_entry="BUY", qty = T1ExQty, limit=BuyTGT1, comment="TPSell", alert_message="["+TPsellData+"]", oca_name = "LX1")
        strategy.exit(id='LongExit', comment="Sell", from_entry='BUY', limit=BuyTGT, alert_message="["+sellData+"]")
    if (strategy.position_size < 0)
        if (paraT1Qty > 0 and paraTGT1 > 0)
            strategy.exit(id="ShortT1Exit", from_entry="SHORT", qty = T1ExQty, limit=ShortTGT1, comment="TPCover", alert_message="["+TPcoverData+"]", oca_name = "SX1")
        strategy.exit(id='ShortExit', comment="Cover", from_entry='SHORT', limit=ShortTGT, alert_message="["+coverData+"]")
if us == true and ut == false
    if (strategy.position_size > 0)
        strategy.exit(id='LongExit', comment="Sell", from_entry='BUY', stop=BuySL, alert_message="["+sellData+"]")
    if (strategy.position_size < 0)
        strategy.exit(id='ShortExit', comment="Cover", from_entry='SHORT', stop=ShortSL, alert_message="["+coverData+"]")
if ut == true and us == true
    if (strategy.position_size > 0)
        if (paraT1Qty > 0 and paraTGT1 > 0)
            strategy.exit(id="LongT1Exit", from_entry="BUY", qty = T1ExQty, limit=BuyTGT1, stop=BuySL, comment="TPSell", alert_message="["+TPsellData+"]", oca_name = "LX1")
        strategy.exit(id='LongExit', comment="Sell", from_entry='BUY', limit=BuyTGT, stop=BuySL, alert_message="["+sellData+"]")
    if (strategy.position_size < 0)
        if (paraT1Qty > 0 and paraTGT1 > 0)
            strategy.exit(id="ShortT1Exit", from_entry="SHORT", qty = T1ExQty, limit=ShortTGT1, stop=ShortSL, comment="TPCover", alert_message="["+TPcoverData+"]", oca_name = "SX1")
        strategy.exit(id='ShortExit', comment="Cover", from_entry='SHORT', limit=ShortTGT, stop=ShortSL, alert_message="["+coverData+"]")

if (et or (SellSignal and (not ShortSignal))) and strategy.position_size > 0
    strategy.cancel('LongExit')
    strategy.cancel('LongT1Exit')
    strategy.close(id='BUY', comment="Sell", alert_message="["+sellData+"]")

if (et or (CoverSignal and (not BuySignal))) and strategy.position_size < 0
    strategy.cancel('ShortExit')
    strategy.cancel('ShortT1Exit')
    strategy.close(id='SHORT', comment="Cover", alert_message="["+coverData+"]")

if (strategy.position_size <= 0)
    strategy.cancel('LongExit')
    strategy.cancel('LongT1Exit')
if (strategy.position_size >= 0)
    strategy.cancel('ShortExit')
    strategy.cancel('ShortT1Exit')
////======================================================

////======================================================
//plotshape(BuySignal, style=shape.triangleup , location=location.belowbar, color=color.green, size=size.normal)
//plotshape(ShortSignal, style=shape.triangledown, location=location.abovebar, color=color.red, size=size.normal)
//plotshape(strategy.position_size>0?SellSignal:na, style=shape.triangledown , location=location.abovebar, color=color.green, size=size.small)
//plotshape(strategy.position_size<0?CoverSignal:na, style=shape.triangleup, location=location.belowbar, color=color.red, size=size.small)

plot(EMAH, "EMA-High", color.green, 1, plot.style_line)
plot(EMAL, "EMA-Low", color.red, 1, plot.style_line)

plot((strategy.position_size > 0)?BuyPrice:na, color=color.fuchsia, linewidth=1, style=plot.style_linebr)
plot((strategy.position_size > 0) and paraTGT1?BuyTGT1:na, color=color.blue, linewidth=1, style=plot.style_linebr)
plot((strategy.position_size > 0)?BuyTGT:na, color=color.blue, linewidth=1, style=plot.style_linebr)
plot((strategy.position_size > 0)?BuySL:na, color=color.orange, linewidth=1, style=plot.style_linebr)

plot((strategy.position_size < 0)?ShortPrice:na, color=color.fuchsia, linewidth=1, style=plot.style_linebr)
plot((strategy.position_size < 0) and paraTGT1?ShortTGT1:na, color=color.blue, linewidth=1, style=plot.style_linebr)
plot((strategy.position_size < 0)?ShortTGT:na, color=color.blue, linewidth=1, style=plot.style_linebr)
plot((strategy.position_size < 0)?ShortSL:na, color=color.orange, linewidth=1, style=plot.style_linebr)
////======================================================

////======================================================
totalCols = 2
totalRows = 5
stgTGTFlag = paraTGTMode != "Off"
stgSLFlag = paraSLMode != "Off"

if stgTGTFlag
    totalRows += 1
if stgSLFlag
    totalRows += 1

var dashtable = table.new(position.bottom_left, totalCols, totalRows,
  frame_color=color.new(#000000,0),
  frame_width=1,
  border_color=color.new(#000000,0),
  border_width=1)

cell_up = #237a27 //input.color(#237a27,'Buy Cell Color'  ,group='Style Settings')
cell_dn = color.red //input.color(color.red,'Sell Cell Color'  ,group='Style Settings')
cell_Neut = color.gray //input.color(color.gray,'Neut Cell Color'  ,group='Style Settings')
txt_col = color.white

table_text_size = size.small

openProfit = strategy.openprofit
lastProfit = strategy.closedtrades.profit(strategy.closedtrades-1)
openProfitColor = openProfit >= 0 ? cell_up : cell_dn
lastProfitColor = lastProfit >= 0 ? cell_up : cell_dn

rowCtr = 0
colCtr = 0

if (barstate.islast and paraShowDashboard)
    table.cell(dashtable, 0, rowCtr, "Mirrorpip Dashboard", text_color=txt_col, text_size=table_text_size, bgcolor=color.new(color.green,80), tooltip="")
    table.cell(dashtable, 1, rowCtr, '', text_color=txt_col, text_size=table_text_size, bgcolor=color.new(color.green,80), tooltip="")
    table.merge_cells(dashtable, 0, 0, 1, 0)

    if strategy.position_size > 0
        rowCtr += 1
        table.cell(dashtable, 0, rowCtr, "Buy",text_color=txt_col,text_size=table_text_size,bgcolor=cell_up,tooltip="")
        table.cell(dashtable, 1, rowCtr, str.tostring(strategy.position_avg_price, format.mintick),text_color=txt_col,text_size=table_text_size,bgcolor=cell_up,tooltip="")
        rowCtr += 1
        table.cell(dashtable, 0, rowCtr, "Qty.",text_color=txt_col,text_size=table_text_size,bgcolor=cell_up,tooltip="")
        table.cell(dashtable, 1, rowCtr, str.tostring(strategy.position_size, "#"),text_color=txt_col,text_size=table_text_size,bgcolor=cell_up,tooltip="")
        if (stgTGTFlag)
            rowCtr += 1
            table.cell(dashtable, 0, rowCtr, "TGT",text_color=txt_col,text_size=table_text_size,bgcolor=cell_up,tooltip="")
            if (BuyTGT1)
                table.cell(dashtable, 1, rowCtr, str.tostring(BuyTGT1, format.mintick) + "/"+ str.tostring(BuyTGT, format.mintick),text_color=txt_col,text_size=table_text_size,bgcolor=cell_up,tooltip="")
            else
                table.cell(dashtable, 1, rowCtr, str.tostring(BuyTGT, format.mintick),text_color=txt_col,text_size=table_text_size,bgcolor=cell_up,tooltip="")
        if (stgSLFlag)
            rowCtr += 1
            table.cell(dashtable, 0, rowCtr, "SL",text_color=txt_col,text_size=table_text_size,bgcolor=cell_dn,tooltip="")
            table.cell(dashtable, 1, rowCtr, str.tostring(BuySL, format.mintick),text_color=txt_col,text_size=table_text_size,bgcolor=cell_dn,tooltip="")
        rowCtr += 1
        table.cell(dashtable, 0, rowCtr, "P&L",text_color=txt_col,text_size=table_text_size,bgcolor=openProfitColor,tooltip="")
        table.cell(dashtable, 1, rowCtr, str.tostring(openProfit, format.mintick),text_color=txt_col,text_size=table_text_size,bgcolor=openProfitColor,tooltip="")

    if strategy.position_size < 0
        rowCtr += 1
        table.cell(dashtable, 0, rowCtr, "Short",text_color=txt_col,text_size=table_text_size,bgcolor=cell_dn,tooltip="")
        table.cell(dashtable, 1, rowCtr, str.tostring(strategy.position_avg_price, format.mintick),text_color=txt_col,text_size=table_text_size,bgcolor=cell_dn,tooltip="")
        rowCtr += 1
        table.cell(dashtable, 0, rowCtr, "Qty.",text_color=txt_col,text_size=table_text_size,bgcolor=cell_dn,tooltip="")
        table.cell(dashtable, 1, rowCtr, str.tostring(strategy.position_size, "#"),text_color=txt_col,text_size=table_text_size,bgcolor=cell_dn,tooltip="")
        if (stgTGTFlag)
            rowCtr += 1
            table.cell(dashtable, 0, rowCtr, "TGT",text_color=txt_col,text_size=table_text_size,bgcolor=cell_up,tooltip="")
            if (ShortTGT1)
                table.cell(dashtable, 1, rowCtr, str.tostring(ShortTGT1, format.mintick) + "/"+ str.tostring(ShortTGT, format.mintick),text_color=txt_col,text_size=table_text_size,bgcolor=cell_up,tooltip="")
            else
                table.cell(dashtable, 1, rowCtr, str.tostring(ShortTGT, format.mintick),text_color=txt_col,text_size=table_text_size,bgcolor=cell_up,tooltip="")
        if (stgSLFlag)
            rowCtr += 1
            table.cell(dashtable, 0, rowCtr, "SL",text_color=txt_col,text_size=table_text_size,bgcolor=cell_dn,tooltip="")
            table.cell(dashtable, 1, rowCtr, str.tostring(ShortSL, format.mintick),text_color=txt_col,text_size=table_text_size,bgcolor=cell_dn,tooltip="")
        rowCtr += 1
        table.cell(dashtable, 0, rowCtr, "P&L",text_color=txt_col,text_size=table_text_size,bgcolor=openProfitColor,tooltip="")
        table.cell(dashtable, 1, rowCtr, str.tostring(openProfit, format.mintick),text_color=txt_col,text_size=table_text_size,bgcolor=openProfitColor,tooltip="")

    if strategy.position_size == 0
        rowCtr += 1
        table.cell(dashtable, 0, rowCtr, "No Trade", text_color=txt_col,text_size=table_text_size,bgcolor=cell_Neut,tooltip="")
        table.cell(dashtable, 1, rowCtr, "Relax", text_color=txt_col,text_size=table_text_size,bgcolor=cell_Neut,tooltip="")
        rowCtr += 1
        table.cell(dashtable, 0, rowCtr, "",text_color=txt_col,text_size=table_text_size,bgcolor=cell_Neut,tooltip="")
        table.cell(dashtable, 1, rowCtr, "",text_color=txt_col,text_size=table_text_size,bgcolor=cell_Neut,tooltip="")
        if (stgTGTFlag)
            rowCtr += 1
            table.cell(dashtable, 0, rowCtr, "",text_color=txt_col,text_size=table_text_size,bgcolor=cell_Neut,tooltip="")
            table.cell(dashtable, 1, rowCtr, "",text_color=txt_col,text_size=table_text_size,bgcolor=cell_Neut,tooltip="")
        if (stgSLFlag)
            rowCtr += 1
            table.cell(dashtable, 0, rowCtr, "",text_color=txt_col,text_size=table_text_size,bgcolor=cell_Neut,tooltip="")
            table.cell(dashtable, 1, rowCtr, "",text_color=txt_col,text_size=table_text_size,bgcolor=cell_Neut,tooltip="")
        rowCtr += 1
        table.cell(dashtable, 0, rowCtr, "",text_color=txt_col,text_size=table_text_size,bgcolor=cell_Neut,tooltip="")
        table.cell(dashtable, 1, rowCtr, "",text_color=txt_col,text_size=table_text_size,bgcolor=cell_Neut,tooltip="")

    if strategy.position_size <= 0 and strategy.position_size[1] > 0
        rowCtr += 1
        table.cell(dashtable, 0, rowCtr, "Exit Buy",text_color=txt_col,text_size=table_text_size,bgcolor=lastProfitColor,tooltip="")
        table.cell(dashtable, 1, rowCtr, str.tostring(lastProfit, format.mintick),text_color=txt_col,text_size=table_text_size,bgcolor=lastProfitColor,tooltip="")
    else if strategy.position_size >= 0 and strategy.position_size[1] < 0
        rowCtr += 1
        table.cell(dashtable, 0, rowCtr, "Exit Short",text_color=txt_col,text_size=table_text_size,bgcolor=lastProfitColor,tooltip="")
        table.cell(dashtable, 1, rowCtr, str.tostring(lastProfit, format.mintick),text_color=txt_col,text_size=table_text_size,bgcolor=lastProfitColor,tooltip="")
    else
        rowCtr += 1
        table.cell(dashtable, 0, rowCtr, "Last P&L",text_color=txt_col,text_size=table_text_size,bgcolor=lastProfitColor,tooltip="")
        table.cell(dashtable, 1, rowCtr, str.tostring(lastProfit, format.mintick),text_color=txt_col,text_size=table_text_size,bgcolor=lastProfitColor,tooltip="")
////======================================================

What This Script Does

This strategy:

  • Uses:
    • EMAA HIGH BAND

    • EMA LOW BAND

      Generates:

    • BUY/COVER signal when Candle closes above HIGH EMA BAND (Green line)
    • SELL/SHORT signal when Candle closes below Low EMA BAND (Red line )
  • Sends webhook alerts to MIRRORPIP automatically

Step-by-Step Setup

Step 1 — Open TradingView

Go to:

TradingView

Open:

  • Pine Editor

Step 2 — Paste the Script

  1. Delete any existing code

  2. Paste the sample Pine Script

    Click:

    • Save
    • Add to Chart

Step 3 — Create TradingView Alert

  1. Click the Alert button
  2. Select your strategy
  3. In the alert settings:

Condition

Choose:

  • EMA BANDS STRATEGY

Interval

Choose:

  • same as charts

Expiration

Choose:

  • default date as per tradingview (usually T+30 DAYS)

Step 4 — Configure Alert Message

In Alert name : mention any desired name

example : EMA BAND SETUP

and in the message section strictly mention {{strategy.order.alert_message}}

MIRRORPIP USES ONLY ONE ALERT MESSAGE : {{strategy.order.alert_message}} for all custom strategies

Webhook URL

Paste  MIRRORPIP webhook URL : https://trade.mirrorpip.com/tradingview

MIRRORPIP uses only one webhook URL for all users it never changes https://trade.mirrorpip.com/tradingview

Step 5 — Enable the Alert

Click:

  • Create Alert

Your TradingView strategy is now connected to MIRRORPIP.

Please note you need paid version of tradingview to automate strategies from Tradingview to Mirrorpip

OFFER : CLICK HERE TO GET 30 DAYS TRIAL OF TRADINGVIEW FREE*


Sample JSON Payload Sent to MIRRORPIP

[
{
"exchange": "coinswitch",
"price": "{{close}}",
"chart_symbol": "{{ticker}}",
"order_type": "buy",
"instrument_type": "NA",
"quantity": "100",
"tp": "20",
"sl": "10",
"code": "68ZMEQMXDDSL507N0"
}
]

MIRRORPIP reads this data and executes trades on your connected crypto exchange. In above example it will execute in Coinswitch.

Included Enhancements for your reference

Going a step further, we have added few enhanced parameters to assist users with :

  • Stop Loss (In points and percentage)
  • Take Profit (In points and percentage)
  • Risk Management (Max loss or profit per trade)
  • Quantity mode (Fixed or exposure based)
  • Intraday and positional mode
  • Partial exit (On Target 1 and remaining on Target 2 )
  • Trailing Stop Loss (In points and percentage)
  • P/L Dashboard on chart

Advanced Example Ideas

You can use above Pine as reference and build your own codes , alternatively we do provde access to Popular automation strategies on MIRRORPIP for FREE:

  • EMA crossover bots
  • RSI reversal strategies
  • Breakout systems
  • Scalping bots
  • Grid strategies
  • Options hedging systems
  • AI-generated TradingView signals

Get access to these pine by visiting respective articles around them.

Best Practices

✅ Always backtest your strategy before live trading

✅ Start with small capital initially

✅ Use proper risk management

✅ Monitor webhook logs inside MIRRORPIP

✅ Test alerts on paper trading first

All strategies provided by Mirrorpip are

Backtest enabled,

Works on all Instruments

Do-not repaint

Fully automated with Mirrorpip platform

Common Errors

Alert Not Triggering

  • Ensure alerts are active
  • Confirm alert()  function exists in script

Webhook Not Received

  • Double-check MIRRORPIP webhook URL
  • Verify internet connectivity

No Trades Executed

  • Ensure exchange API is connected properly
  • Verify trading permissions are enabled

Need Help?

If you face issues integrating TradingView strategies with MIRRORPIP, contact the MIRRORPIP support team directly from your dashboard.

Happy Automating 🚀

Did this answer your question? Thanks for the feedback There was a problem submitting your feedback. Please try again later.
